How to register RaeNotes in your LMS and add the LMS as an LTI platform in RaeNotes. Do the steps in order — the LMS generates identifiers that RaeNotes needs, and RaeNotes publishes URLs that the LMS needs.
New to the integration? Read LMS integration (LTI 1.3) — overview first for the prerequisites. Every field mentioned below is explained in the LTI settings reference.

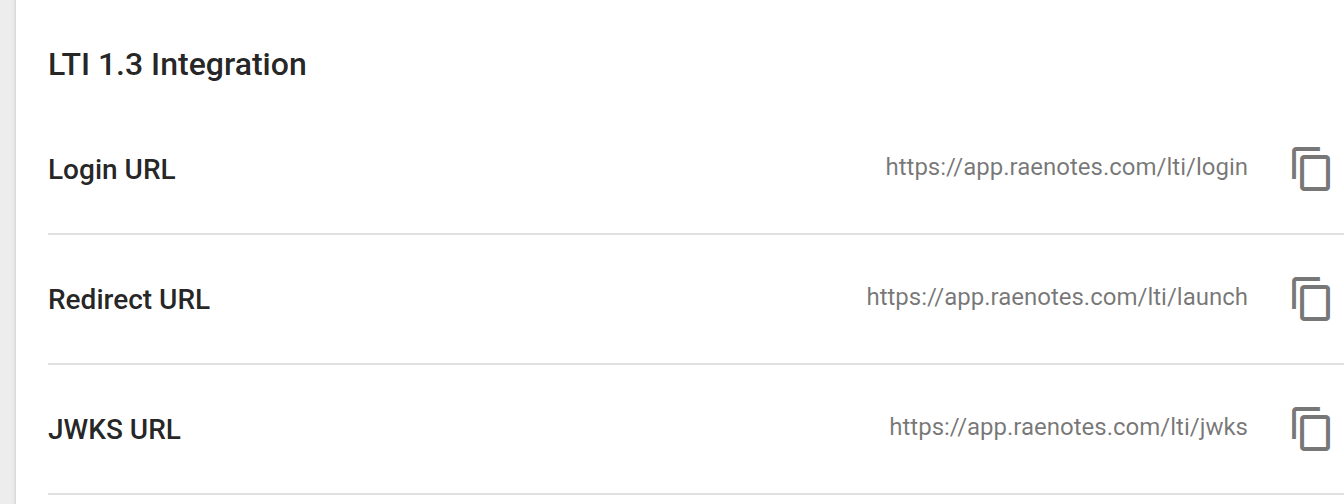

Click your profile picture and choose Integrations. The LTI 1.3 Integration section shows the three RaeNotes URLs your LMS will need, each with a copy button.
Don't see an Add LTI Platform button? The API-access feature is not enabled on your account. Contact us to have it switched on.
Paste the three URLs into your LMS tool registration:
| RaeNotes URL | Example value | What the LMS calls it |
|---|---|---|
| Login URL | https://app.raenotes.com/lti/login |
Initiate login URL / OIDC initiation URL / Authorization (Login) URL |
| Redirect URL | https://app.raenotes.com/lti/launch |
Tool URL / Launch URL, and Redirection URI(s) |
| JWKS URL | https://app.raenotes.com/lti/jwks |
Public keyset / JWKS (Keyset) URL |
Always copy the values from your own Integrations page rather than typing the examples above. Detailed, LMS-specific instructions: Moodle, LearnWorlds.
After you save the tool, the LMS produces the identifiers and endpoints that identify it to RaeNotes: Issuer (platform ID), Client ID, Deployment ID, Authentication request URL, Access token URL and Key Set URL. Keep that page open.

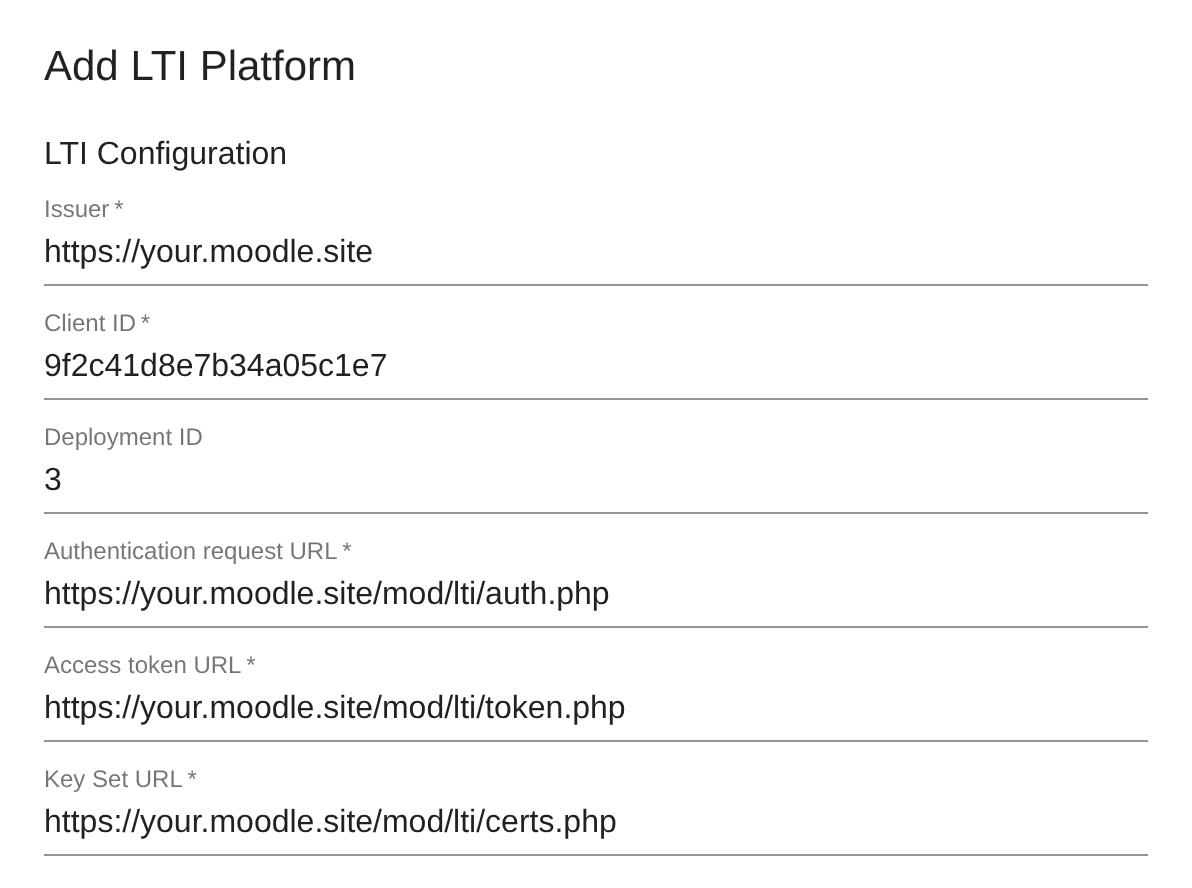

Back on the Integrations page, click Add LTI Platform and fill in the LTI Configuration section with the values from step 3. Everything except Deployment ID is required.

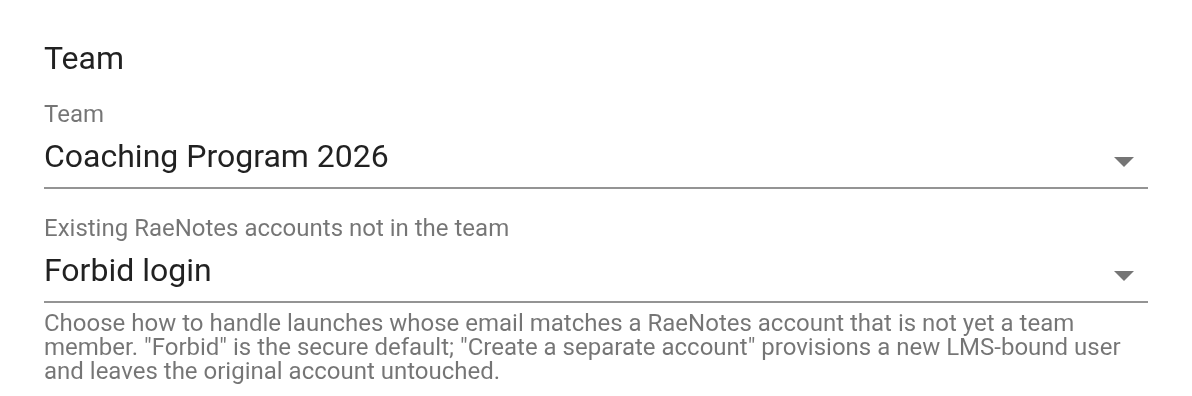

In the Team section pick the team every launched student joins. Only teams you administer are listed, and the choice is final — it cannot be changed after the platform is created.
Use Existing RaeNotes accounts not in the team to decide what happens when a student launches with an email that already belongs to a RaeNotes account outside the team: Forbid login (the secure default) rejects the launch, while Create a separate account provisions a new LMS-bound account and leaves the original untouched.

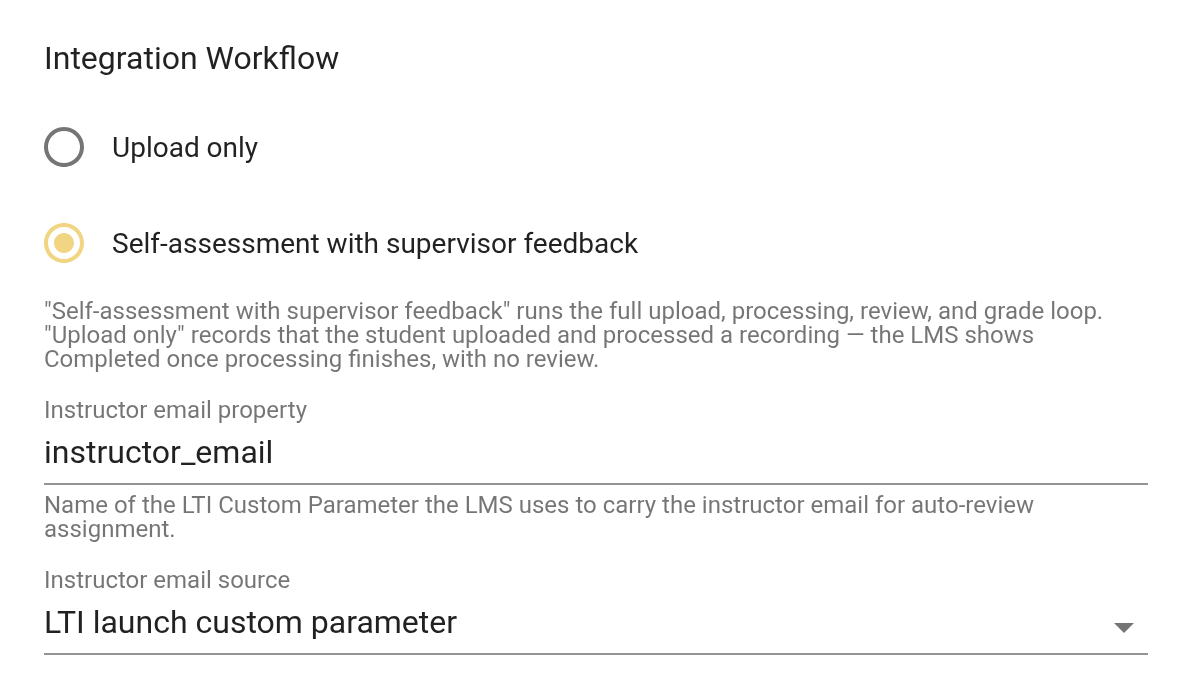

Select Upload only or Self-assessment with supervisor feedback. For self-assessment, also set:
instructor_email.

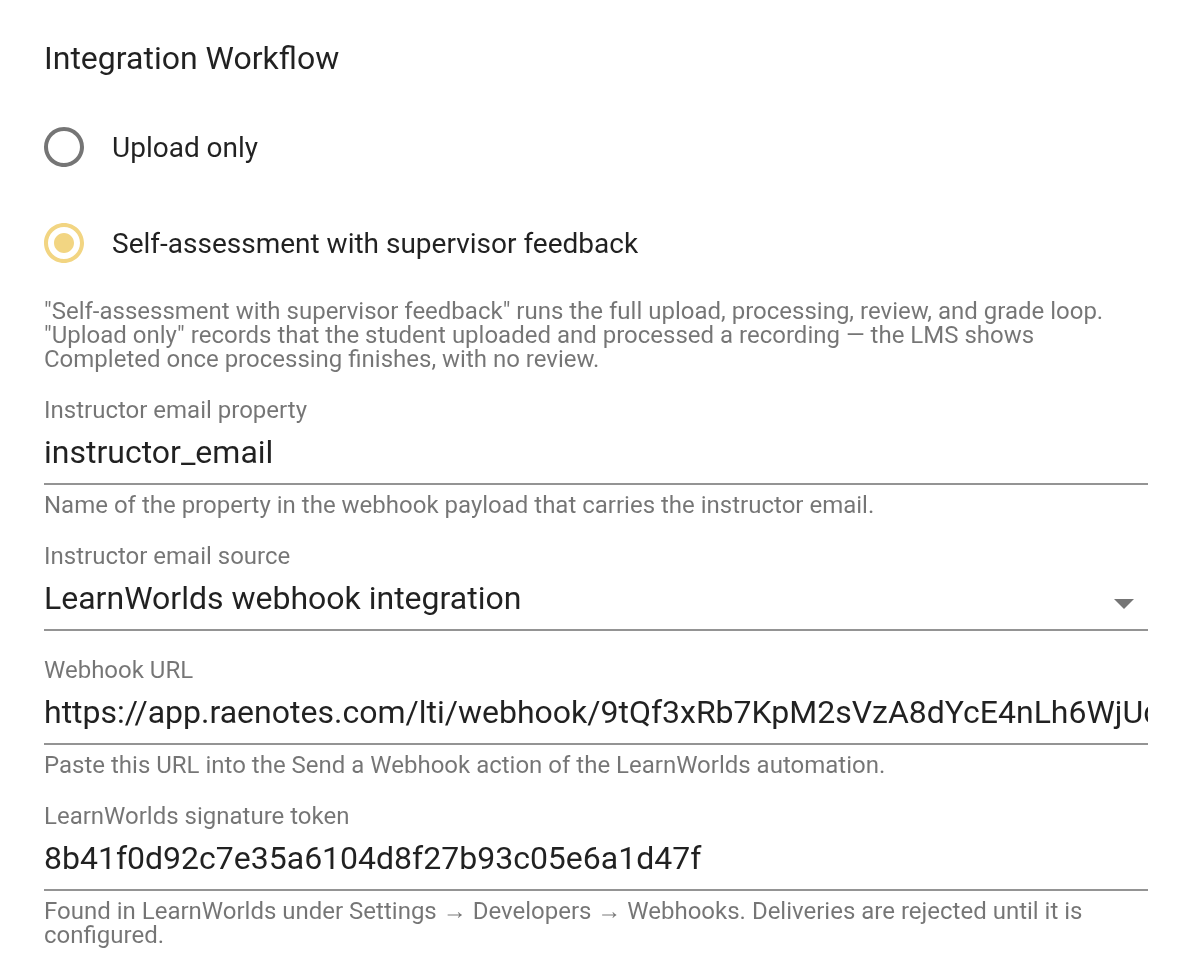

Click Add. If you chose LearnWorlds webhook integration, reopen the platform with the pencil icon: the Webhook URL is generated on save and only appears when editing. Copy it into the Send a Webhook action of your LearnWorlds automation, and paste your LearnWorlds signature token into the dialog — deliveries are rejected until it is set.

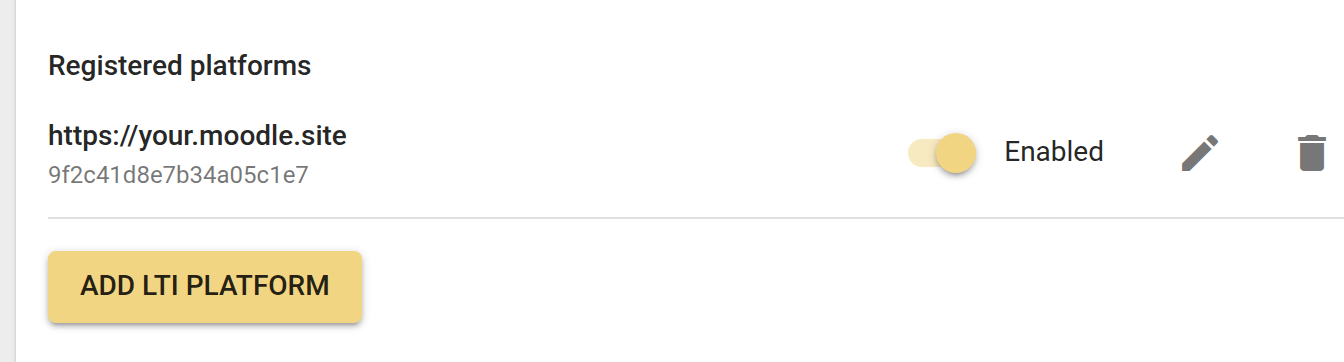

Create the LTI activity in your LMS and open it as a test student. A successful launch lands on the RaeNotes upload page for that assignment. The platform now appears under Registered platforms, where you can disable, edit or delete it.
Tip. Run the first end-to-end test with a real (small) recording so you can confirm the whole chain: launch → upload → processing → review → grade in the gradebook.
